UL/ FM Gear Operated Lug Butterfly Valve Distributor

Model	UL 1091/ MSS SP-67
Certification	UL Listed/ FM Approved
Size	2”-12”
Type	Lug
Connection	Flanged as B16.42 Class 150
Contact rating	16A at 125/250VAC; 0.5A at 250VDC; 10A at 36VDC
Temperature	0°C to 100°C
Pressure	PN10/ PN16
Surface	FBE coating as AWWA C550

Model

UL 1091/ MSS SP-67

Certification

UL Listed/ FM Approved

Size

2”-12”

Type

Lug

Connection

Flanged as B16.42 Class 150

Contact rating

16A at 125/250VAC; 0.5A at 250VDC; 10A at 36VDC

Temperature

0°C to 100°C

Pressure

PN10/ PN16

Surface

FBE coating as AWWA C550

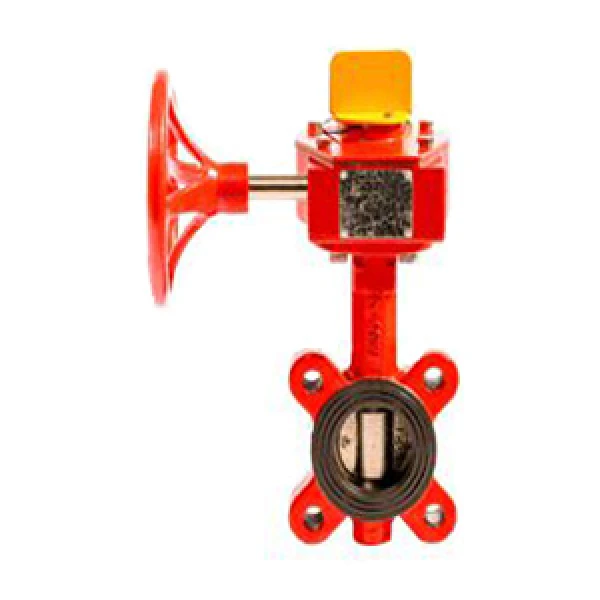

UL/ FM Gear Operated Lug Butterfly Valve

Gear operated lug butterfly valve is a Lug butterfly valve operated by worm gear, you can turn the gear to open and close the valve and adjust the speed of the medium through the valve disc.

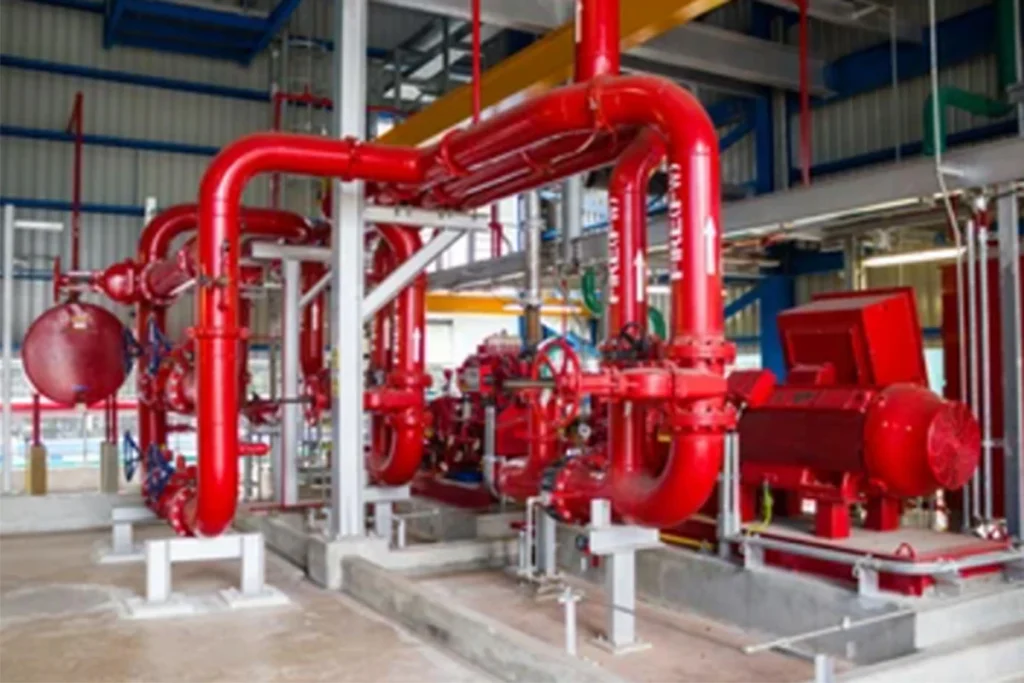

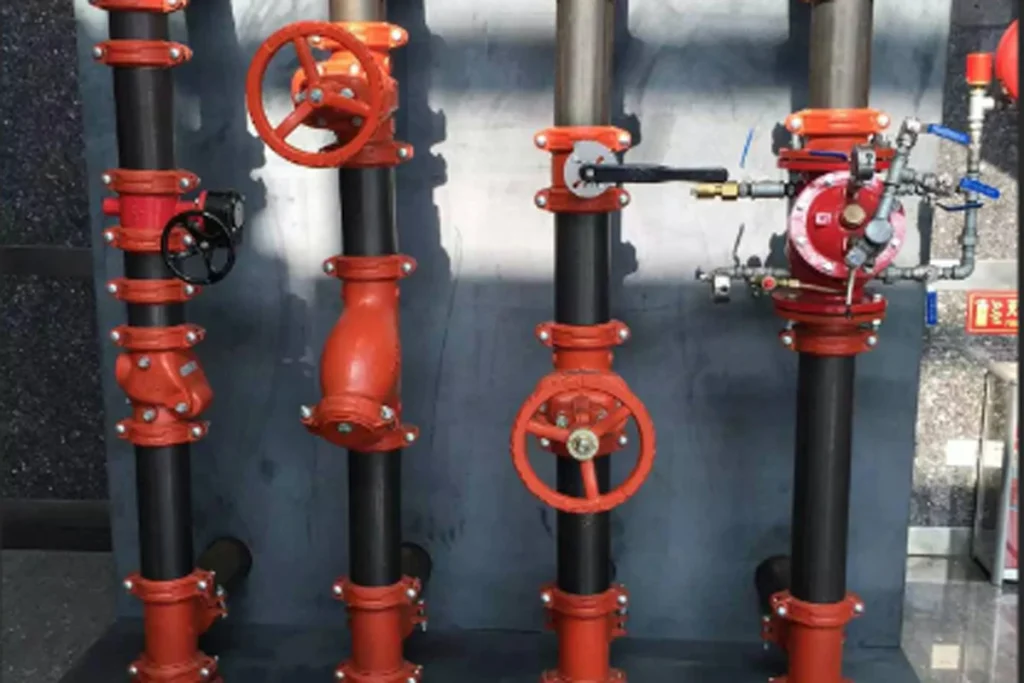

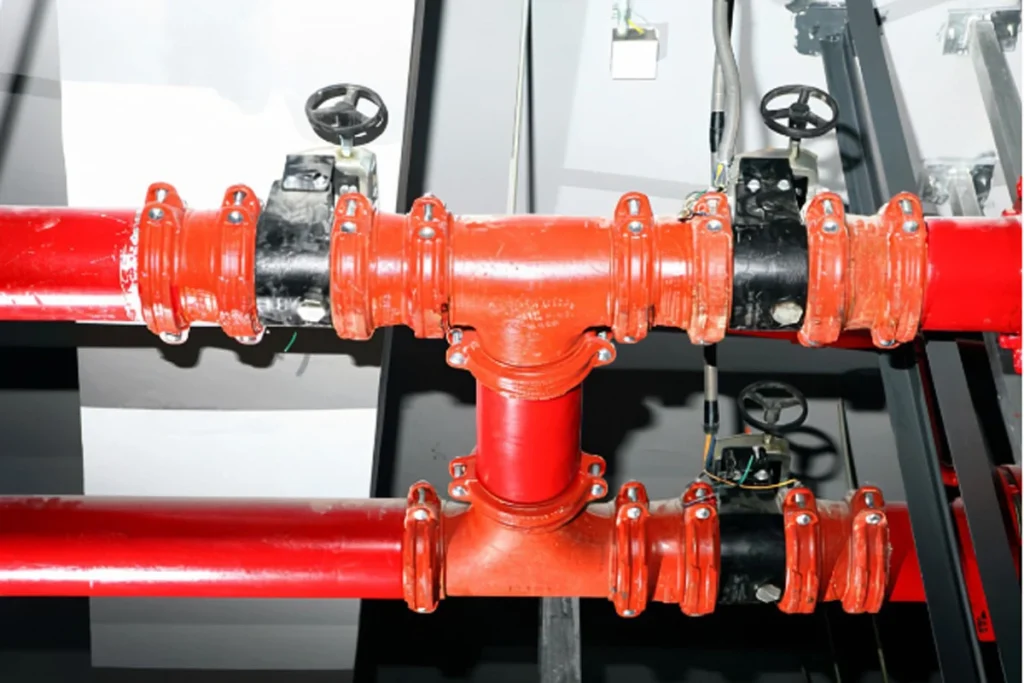

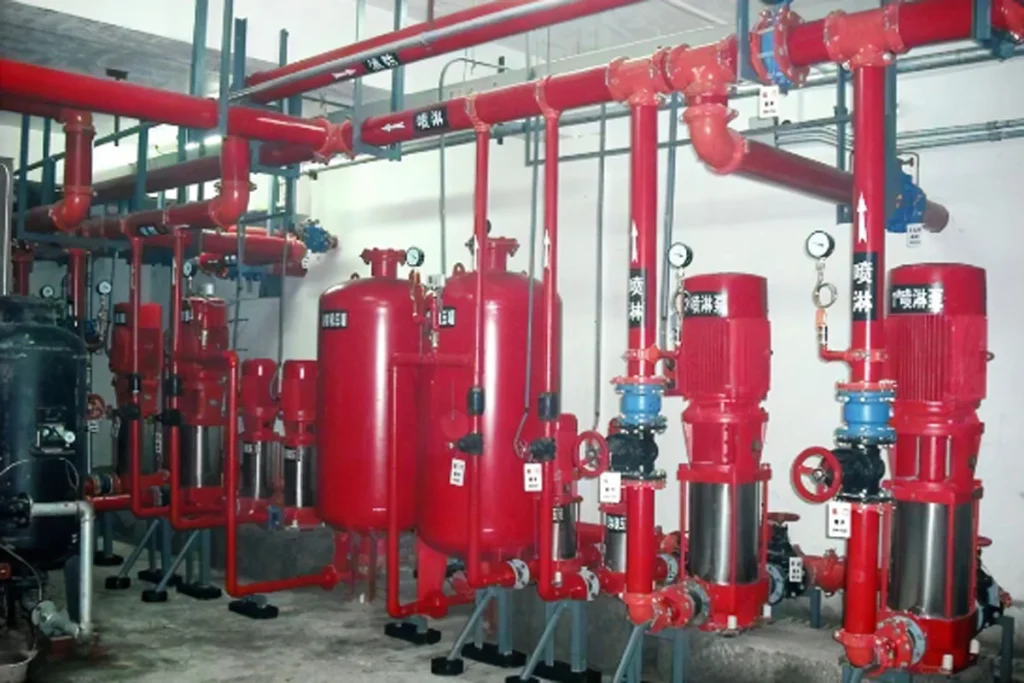

Application

Example size

Note: Some of the main specifications are shown below, please contact us for more details.

Size			Dimension (mm)					Working presssure	Ref. NO.
Inch	DN	mm	A	B	H	L	C	Working presssure	Ref. NO.
2”	50	60.3	141	65	123	202	43	PN 10/ PN 16	V1101
2-1/2”	65	76.1	153	71	123	202	46	PN 10/ PN 16	V1102
3”	80	88.9	158	81	123	202	46	PN 10/ PN 16	V1103
4”	100	114.3	176	95	123	202	52	PN 10/ PN 16	V1104
5”	125	139.7	191	111	123	202	56	PN 10/ PN 16	V1105
