UL 1242 IMC Conduit Pipes, HDG Exporter

Model	UL1242
Certification	UL
Material	Q195, Q215, Q235, Q345
Trade Size	1/2″ – 4″ ( DN16 – DN103)
Finish	HDG
Usage	Electrical raceway system
Surface treatment	Galvanized

Model

UL1242

Certification

Material

Q195, Q215, Q235, Q345

Trade Size

1/2″ – 4″ ( DN16 – DN103)

Finish

HDG

Usage

Electrical raceway system

Surface treatment

Galvanized

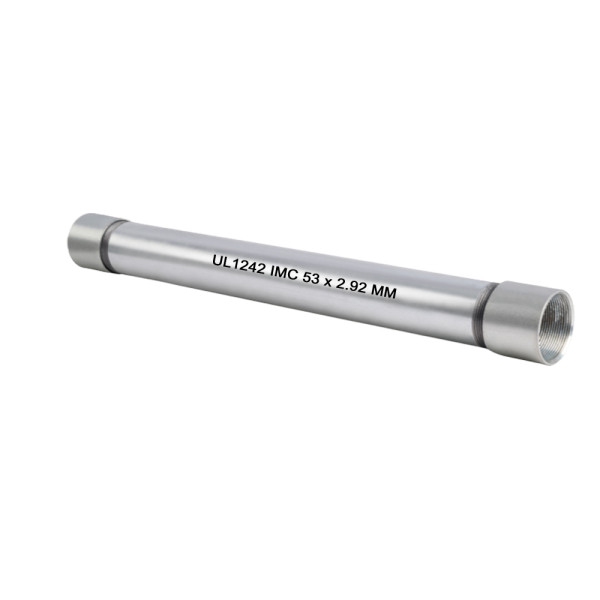

IMC Steel Pipes UL1242 Intermediate Metal Condiut for Cable Protection

Intermediate metal conduit, or IMC, is a rigid steel electrical conduit designed for outdoor exposure and strong connections. It was designed specifically to protect insulated electrical conductors and cables. By utilizing IMC in any areas allowed, you can all but eliminate the need for a heavier-walled conduit.

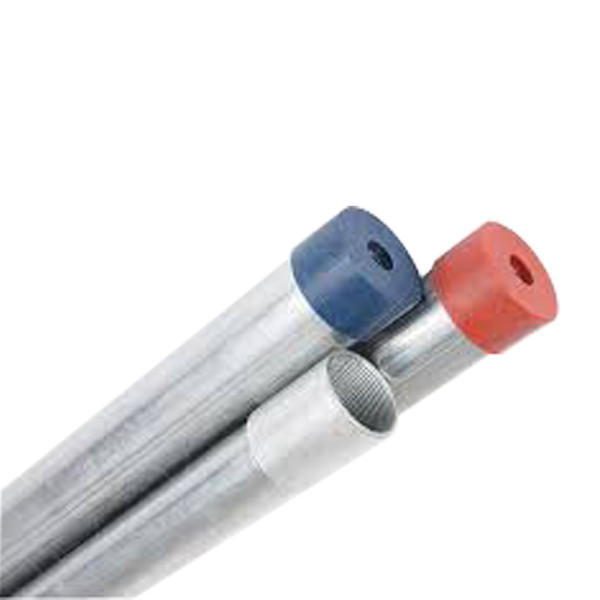

IMC conduit is coated with a hot galvanized coating on the exterior and a special corrosive-resistant coating on the inside to extend the conduit’s lifespan. Common conduit sizes range from 1/2 inch to 4 inches in diameter. It is sold in 10-foot lengths, with or without threaded ends.

EMT Fittings

IMC conduit comes in a variety of sizes to fill your conduit needs. Remember to include the accessories that you may need to complete the project. This may include threaded 45- and 90-degree fittings, couplings, locknuts, and bushings (regular or self-sealing type).

Example Size

Note: Some of the main specifications are shown below, please contact us for more details.

Trade Size Designator		Nominal Outside Dia.		Nominal Wall Thickness		Length
U.S.	Metric	in.	mm	in.	mm	ft.	mm
1/2″	16	0.815	20.7	0.078	1.98	10	3050
3/4″	21	1.029	26.1	0.083	2.10	10	3050
1″	27	1.290	32.77	0.093	2.35	10	3050
1 1/4″	35	1.638	41.59	0.095	2.42	10	3050
1 1/2″	41	1.883	47.82	0.100	2.54	10	3050
2″	53	2.360	59.93	0.105	2.67	10	3050
2 1/2″	63	2.875	72.57	0.150	3.81	10	3050
3″	78	3.476	88.29	0.150	3.81	10	3050
3 1/2″	91	3.971	100.86	0.150	3.81	10	3050
4″	103	4.466	113.44	0.150	3.81	10	3050
