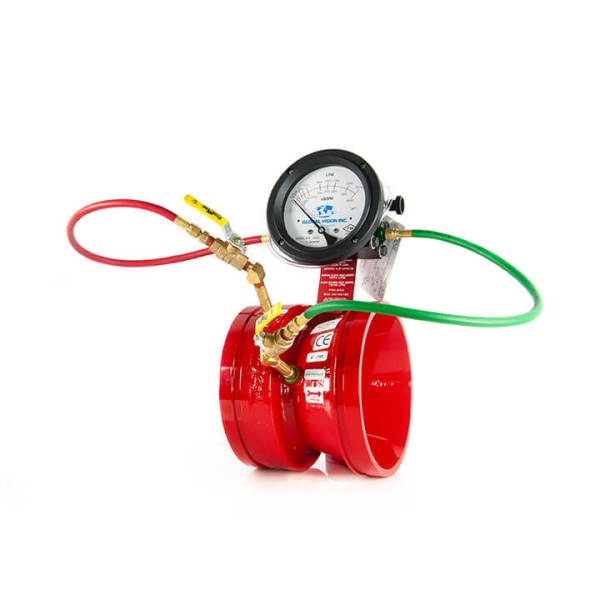

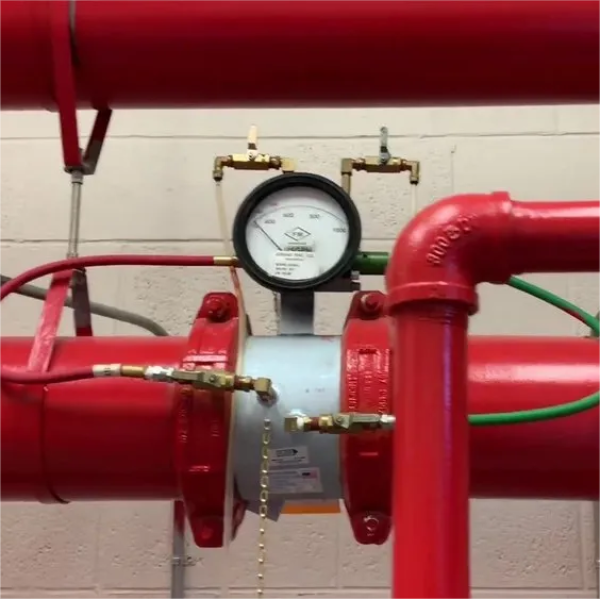

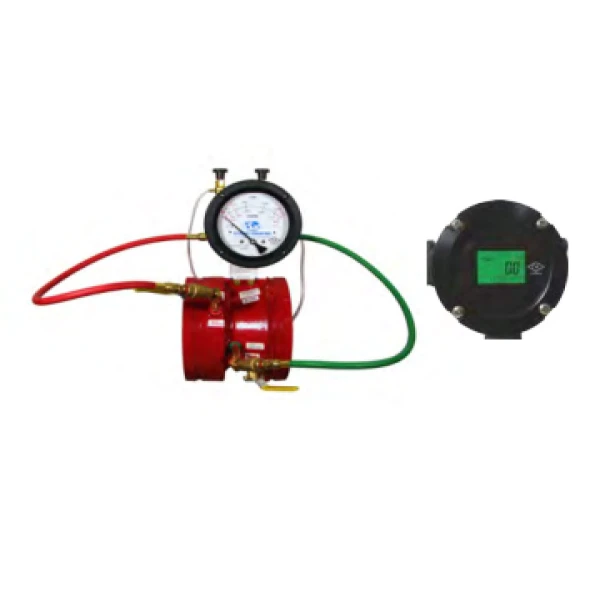

Venturi Fire Pump Flow Meter
Venturi Fire Pump Flow Meter is a flow meter with venturi type, used to determine the discharge of a fire pump. It’s widely used to measure the flow of single-phase stable fluid in closed pipelines, and in many energy and power industries, such as gas, electricity, cement, etc
Example Size
Note: Some of the main specifications are shown below, please contact us for more details.
Capacity | Pressure (psi) | Stages Number | Approx. speed | ||
gpm | m³/h | Diesel Drive | Motor Drive | set | rpm |
500 | 114 | 59 – 333 | 43 – 277 | 3 – 9 | 1450/ 2900 |
750 | 170 | 82 – 368 | 42 – 300 | 3 – 10 | 1450/ 2900 |
1000 | 227 | 65 – 272 | 39 – 270 | 3 – 10 | 1450/ 2900 |
1250 | 284 | 78 – 403 | 50 – 270 | 3 – 10 | 1450/ 2900 |
1500 | 341 | 70 – 247 | 45 – 200 | 2 – 7 | 1450/ 2900 |
2000 | 454 | 64 – 281 | 47 – 197 | 2 – 6 | 1450/ 2900 |
2500 | 568 | 67 – 280 | 60 – 185 | 2 – 3 | 1450/ 2900 |
3000 | 681 | 55 – 208 | 55 – 189 | 2 – 2 | 1450/ 2900 |
3500 | 795 | 100 – 208 | 55 – 161 | 2 – 2 | 1450/ 2900 |
4000 | 908 | 78 – 182 | 77 – 180 | 2 – 2 | 1450/ 2900 |
One-stop service to facilitate your purchase
The Lai Group continues to provide service and support after your purchase. To save you time, we offer you numerous value-added services such as processing, logistics management and testing.
Processing Services:
- OEM & ODM
- Protective Coatings
- Saw and Flame Cutting
- Beveling, Threading and Grooving
For more information, please contact our service team.
