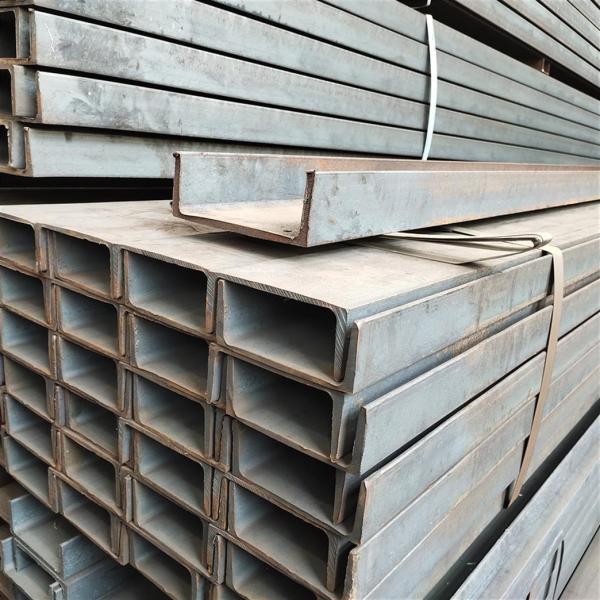

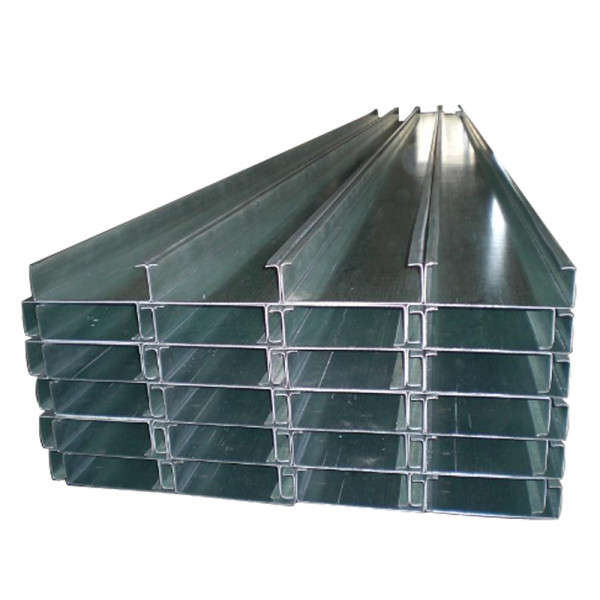

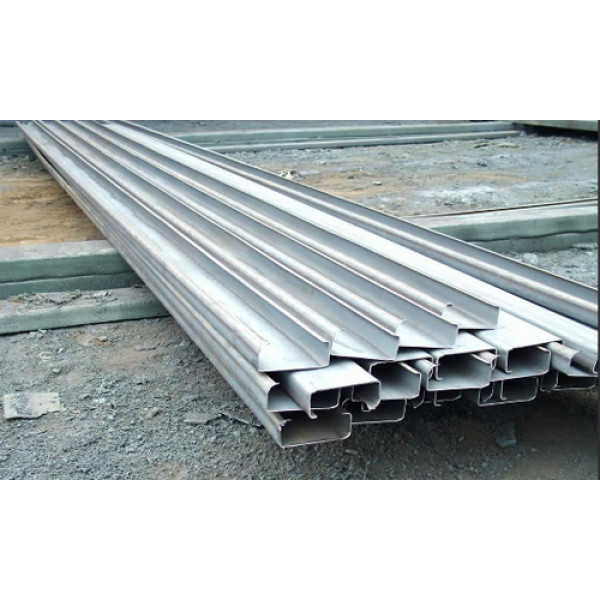

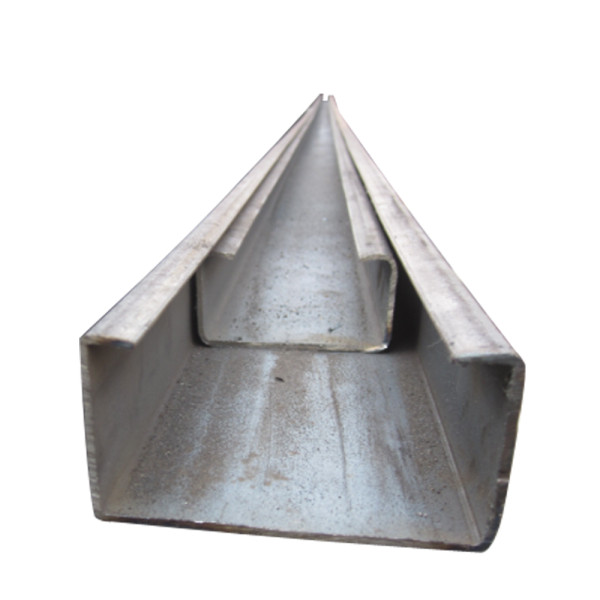

European Standard Channel Steel
Channel steel is a long steel with a grooved cross-section, a carbon structural steel for construction and machinery, and a section steel with a complex cross-section and a grooved shape.
EN 10279:2000 hot rolled steel channels specification also applies to EN 10206-1:2000, EN 10163-3:2000.
Channel steel is mainly used in building structure, curtain wall engineering, mechanical equipment and vehicle manufacturing. Except for special requirements, it is delivered in hot rolled or forged condition; when used as die steel, it is usually delivered in hot rolled, normalized, normalized plus tempered condition.
Application
Example Size
Designation | Unit Weight(kg/m) | Standard Sectional Dimension(mm) | ||||
G | H | B | tw | tr | r | |
upn90 | 5.79 | 50 | 38 | 5.0 | 7.0 | 7.0 |
upn65 | 7.09 | 65 | 42 | 5.5 | 7.5 | 7.5 |
upn80 | 8.64 | 80 | 45 | 6.0 | 8.0 | 8.0 |
upn100 | 10.6 | 100 | 50 | 6.0 | 8.5 | 8.5 |
upn120 | 13.4 | 120 | 55 | 7.0 | 9.0 | 9.0 |
upn140 | 16.0 | 140 | 60 | 7.0 | 10.0 | 10.0 |
upn160 | 18.8 | 160 | 65 | 7.5 | 10.5 | 10.5 |
upn180 | 22.0 | 180 | 70 | 8.0 | 11.0 | 11.0 |
upn200 | 25.3 | 200 | 75 | 8.5 | 11.5 | 10.5 |

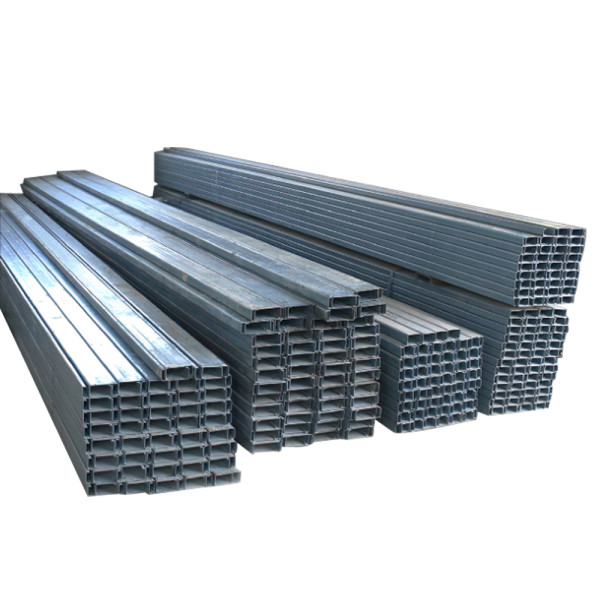

Packing & Delivery
Dundle
50~100pcs by Bundle
MOQ
The minimum order quantity is 5 Ton
Package
Wrapped by Plastic Bag
Delivery Time
Shipped in 30-40 days after paying 30% advance
One-stop service to facilitate your purchase
Processing Services:
- OEM & ODM
- Protective Coatings
- Saw and Flame Cutting
- Beveling, Threading and Grooving
